A jewelry laser welder can help repair shops complete delicate work that would be difficult or risky with a traditional torch.
Common applications include prong retipping, chain repair, ring resizing, porosity filling, stone-set jewelry repair and precision assembly. Because the heat-affected area is small, technicians can often work closer to gemstones and delicate components with better control.
However, prices vary significantly. A factory-direct or compact entry-level machine may cost around $3,500–$6,000, while premium European and American systems can exceed $20,000.
The best machine is not always the most expensive one. Your repair volume, materials, support requirements and expected payback period matter more than the brand name alone.
10 Best Jewelry Laser Welders Quick Comparison
Rank | Brand | Recommended Model | Approximate 2026 Price | Best For |
|---|---|---|---|---|
1 | LaserStar | 993 iWeld | $17,500 | Established professional repair shops |
2 | JewelryLaserNova | M3 Jewelry Laser Welder | $8,000–$15,000 | Growing shops seeking faster ROI |
3 | Orotig | Evo White | $17,500 | Premium jewelry workshops |
4 | Orion by Sunstone | LZR ECO | $10,000–$11,900 | US buyers wanting domestic support |
5 | SISMA | LM-D 230 Flex | $24,250–$25,500 | High-volume precision repair |
6 | Elettrolaser | Dado 2.0 | Around $5,200 | Small workshops and first-time buyers |
7 | MaxWave | MW-QW Series | $3,300–$4,900 | Factory-direct value |
8 | Neutec | PulsePoint Studio Plus 150 | Around $14,995 | Dealer support and training |
9 | Han’s Laser | W150G | Request a quote | Larger workshops and manufacturers |
10 | Mactron Laser | MT-W-J Series | Around $5,560 | Mid-range factory-direct buyers |
1. LaserStar 993 iWeld
Best Overall for Established Repair Shops
LaserStar is one of the best-known professional jewelry laser welding brands. Its systems are commonly used for ring resizing, prong retipping, bezel repair, porosity filling and precision jewelry assembly.
The 993 iWeld is a 60W benchtop machine offering up to 180 joules of pulse energy, 11kW peak power, adjustable 0.2–2.0mm spot sizes and welding speeds of up to 50Hz. A 15× microscope supports accurate positioning during delicate repair work.
Price: Approximately $17,500. Freight, fume extraction, argon equipment and optional accessories may cost extra.
Best for: Established repair shops, high-end custom jewelry studios and businesses completing professional repairs every day.
What you need to know before buying
LaserStar offers a mature support and training ecosystem, but the complete installed cost can be noticeably higher than the machine price. Confirm which accessories and services are included before ordering.
For a small shop completing only occasional laser repairs, the 993 iWeld may offer more capacity than the business can profitably use.
ROI reality check
At a net contribution of $55 per repair, approximately 318 additional repairs would be required to recover a $17,500 investment.
A shop completing 50 profitable laser repairs per month could theoretically reach break-even in six to seven months. Lower-volume businesses may need considerably longer.
2. JewelryLaserNova M3 3-in-1 Jewelry Laser Welder
Best All-in-One System for Jewelry Repair and Customization
The MaxWave M3 combines laser welding, marking and cutting in one compact machine. It allows jewelry businesses to handle repairs, personalized engraving and small-batch production without purchasing multiple systems.
The machine uses a 1080nm laser and is available with a 150W welding source combined with 10W, 20W, 30W or 60W marking configurations. Its air-cooled design simplifies installation, while the compact 300 × 340 × 320mm body fits easily into repair shops and retail counters. The laser source is rated for more than 100,000 hours.
Price: Approximately $8,000–$15,000 in European and North American markets, depending on configuration, accessories, shipping and local support.
Best for: Jewelry repair shops, goldsmiths and custom jewelry studios that want to combine welding, engraving and light cutting in one machine.
What you need to know before buying
Confirm the exact welding and marking configuration, supported materials, marking area, cutting capacity, included fixtures and software before ordering.
You should also request sample videos using your actual gold, silver, platinum or stone-set jewelry to verify all three functions.
ROI reality check
The M3 can generate income from repairs, engraving, logo marking and custom jewelry work.
At $8,000 in monthly revenue and an estimated 40%–70% gross margin, monthly gross contribution could reach approximately $3,200–$5,600.
Under this scenario, an $8,000 machine could theoretically recover its cost in around 1.4–2.5 months, while a $15,000 configuration may take approximately 2.7–4.7 months.
Actual payback depends on customer demand, labor, training, marketing and how frequently all three functions are used.

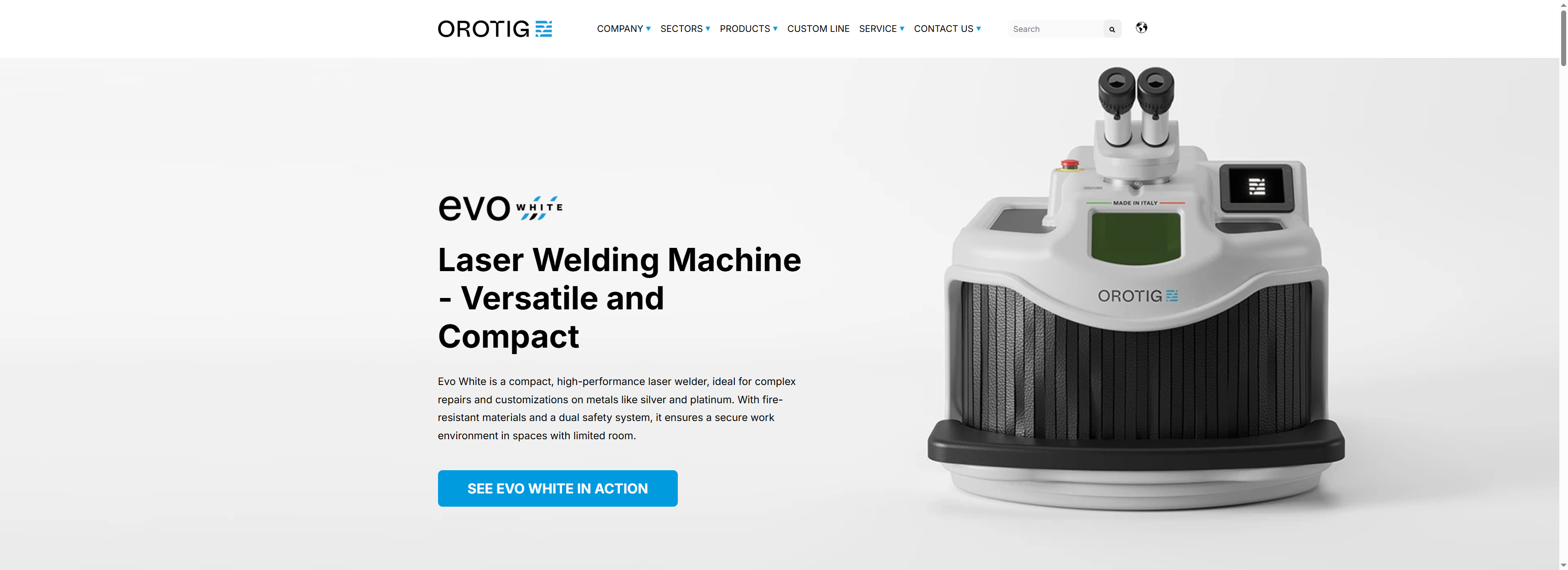

3. Orotig Evo White
Best Premium Jewelry Laser Welder
Orotig is an Italian manufacturer specializing in laser welder for jewelry and precious-metal applications.
The Evo White provides up to 160 joules of pulse energy, 7kW peak power, 75W average power, frequencies up to 15Hz and spot sizes from approximately 0.15 to 1.5mm.
Its EnergyTune function automatically adjusts parameters according to the selected metal and spot size. A Leica 10× optical system and touchscreen controls provide a refined operator experience.
Price: Approximately $17,500. The more powerful Evo X and Revo X² models cost significantly more.
Best for: Premium jewelry stores, experienced goldsmiths, custom designers and workshops handling high-value gold, platinum and silver pieces.
What you need to know before buying
Part of the Orotig price pays for optics, software, ergonomics and brand support rather than raw power alone.
Confirm whether local installation, operator training and remote assistance are included. Service availability may depend on the distributor in your country.
ROI reality check
The Evo White creates value by reducing repair risk, improving finish quality and allowing a shop to accept delicate work it previously declined.
It is most suitable for businesses completing 40–60 profitable laser repairs per month or regularly handling high-margin custom work.

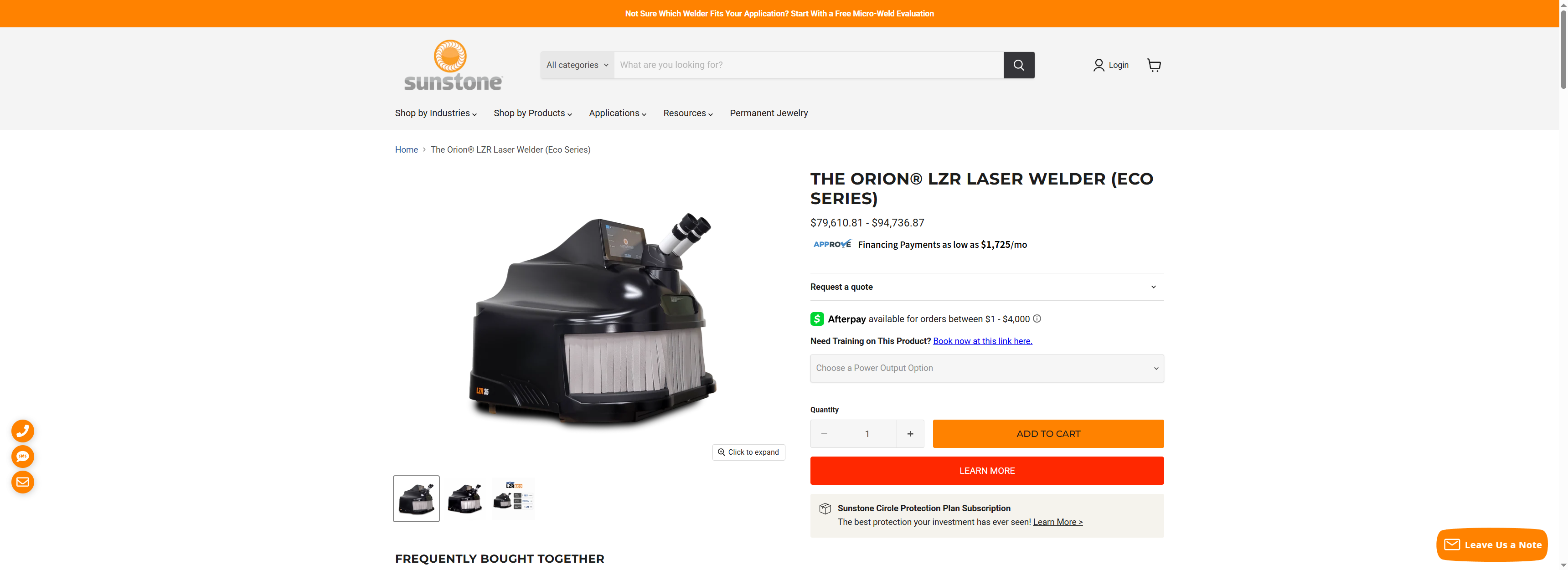

4. Orion LZR ECO by Sunstone
Best US Benchtop Option
Orion is Sunstone’s professional laser welding product line. The LZR ECO is its entry-level benchtop system and is available in several energy configurations.
Depending on the selected version, the machine can produce up to approximately 10 welds per second. Buyers needing higher output can consider the LZR Select, LZR Pro or LZR Pro Max.
Price: Approximately $10,000–$11,900. Higher Orion models range from around $18,900 to $25,900.
Best for: US jewelry repair shops, small and medium retailers and businesses that value domestic technical support.
What you need to know before buying
The lower-priced LZR ECO configuration may not provide the same capacity as the higher-energy version. Compare the exact model specifications rather than relying on the product name alone.
Ask the supplier to test difficult samples such as ring shanks, damaged prongs, sterling silver and thicker repair areas—not only thin chains.
ROI reality check
At $2,750 in monthly net contribution, the base machine cost could theoretically be recovered in around four months.
A lower-volume shop generating $800 per month from laser work may need approximately 13–15 months.

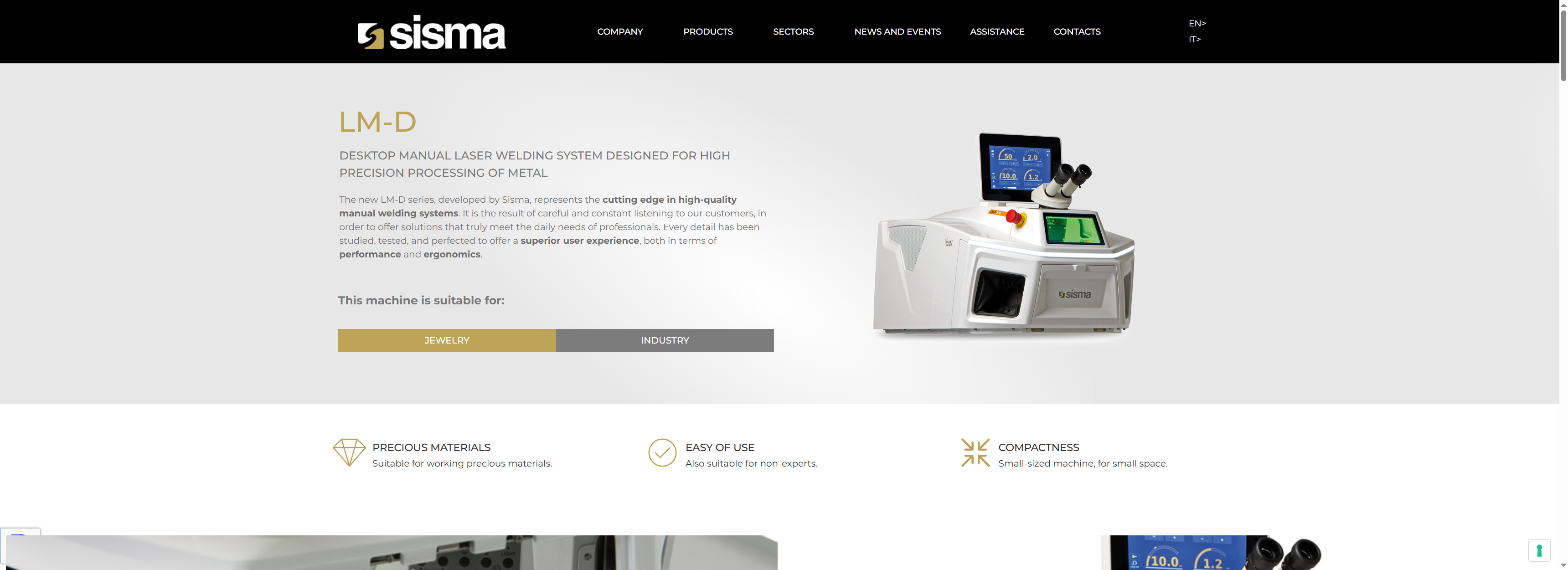

5. SISMA LM-D 230 Flex
Best for High-Volume Precision Work
SISMA is an established Italian manufacturer serving the jewelry, fashion and precision-manufacturing industries.
The LM-D 230 Flex jewelry welder is designed for high-precision manual welding of precious and non-precious metals. It offers approximately 230 joules of pulse energy, 9kW peak power and 85W average power.
The system includes Leica optics, touchscreen controls, integrated cooling and connections for shielding gas and compressed air.
Price: Approximately $24,250–$25,500, depending on the distributor and package.
Best for: High-volume repair centers, jewelry manufacturers, centralized chain-store workshops and businesses working extensively with platinum and precious metals.
What you need to know before buying
The LM-D 230 Flex is a major capital investment. A business needs sufficient workload to benefit from its power, durability and production capability.
Small stores completing fewer than 20 suitable repairs per month will generally receive a better financial return from a less expensive machine.
ROI reality check
A machine costing around $25,000 is difficult to justify through occasional repairs.
At $7,000 in monthly net contribution, the theoretical payback period is around three and a half months. At only $800 per month, it may take more than 30 months.

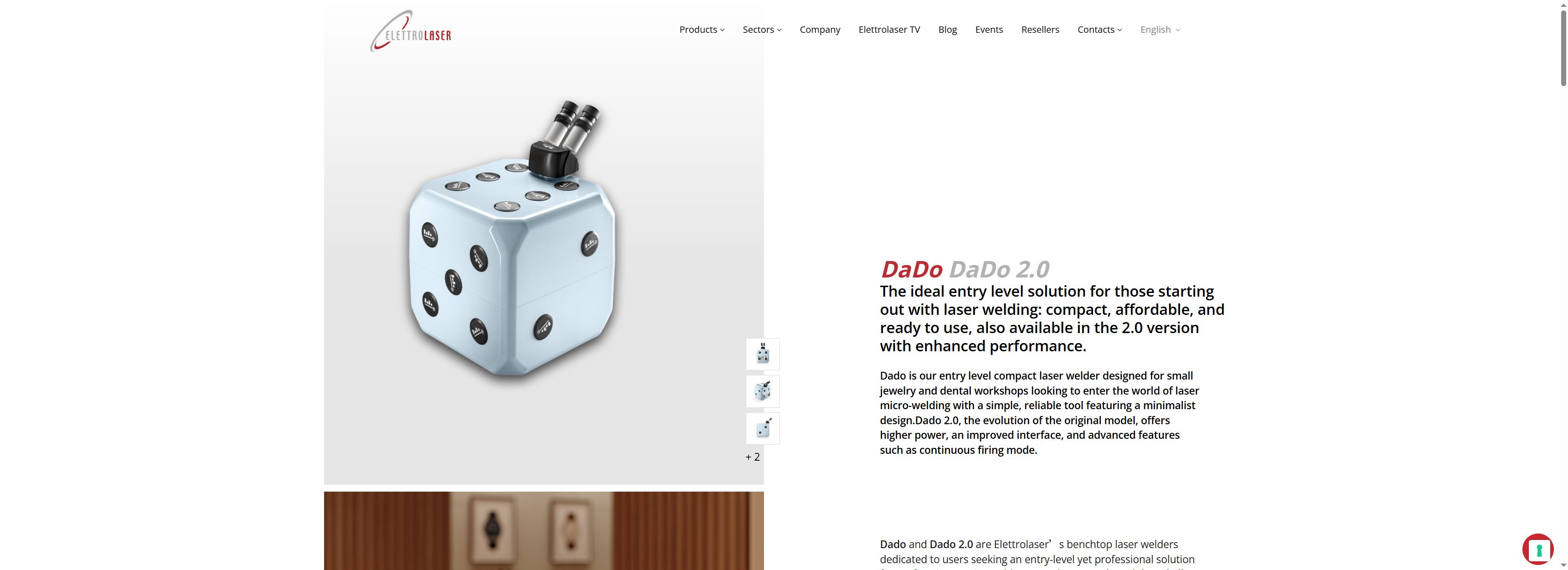

6. Elettrolaser Dado 2.0
Best Compact Entry-Level European Welder
The Dado 2.0 is one of the most accessible jewelry laser welders from an established European manufacturer.
It weighs approximately 15kg and offers 2.5kW peak power, 10W average power, welding frequencies up to 4Hz and adjustable spot sizes from approximately 0.2 to 1.5mm.
Its compact cube-shaped design, integrated liquid cooling and mobile-app controls make it suitable for workshops with limited space.
Price: Around $5,200, depending on the distributor, VAT and included accessories.
Best for: Independent goldsmiths, small workshops and repair businesses purchasing their first true laser welder.
What you need to know before buying
The Dado 2.0 is compact and affordable, but it does not match the energy or production capacity of larger professional systems.
Buyers frequently repairing thick platinum pieces, highly reflective metals or demanding production work should test the machine carefully before ordering.
ROI reality check
At $800 in monthly net contribution, a $5,200 investment could theoretically be recovered in six to seven months.
This makes the Dado 2.0 attractive for small workshops that have regular demand but cannot justify a premium machine.

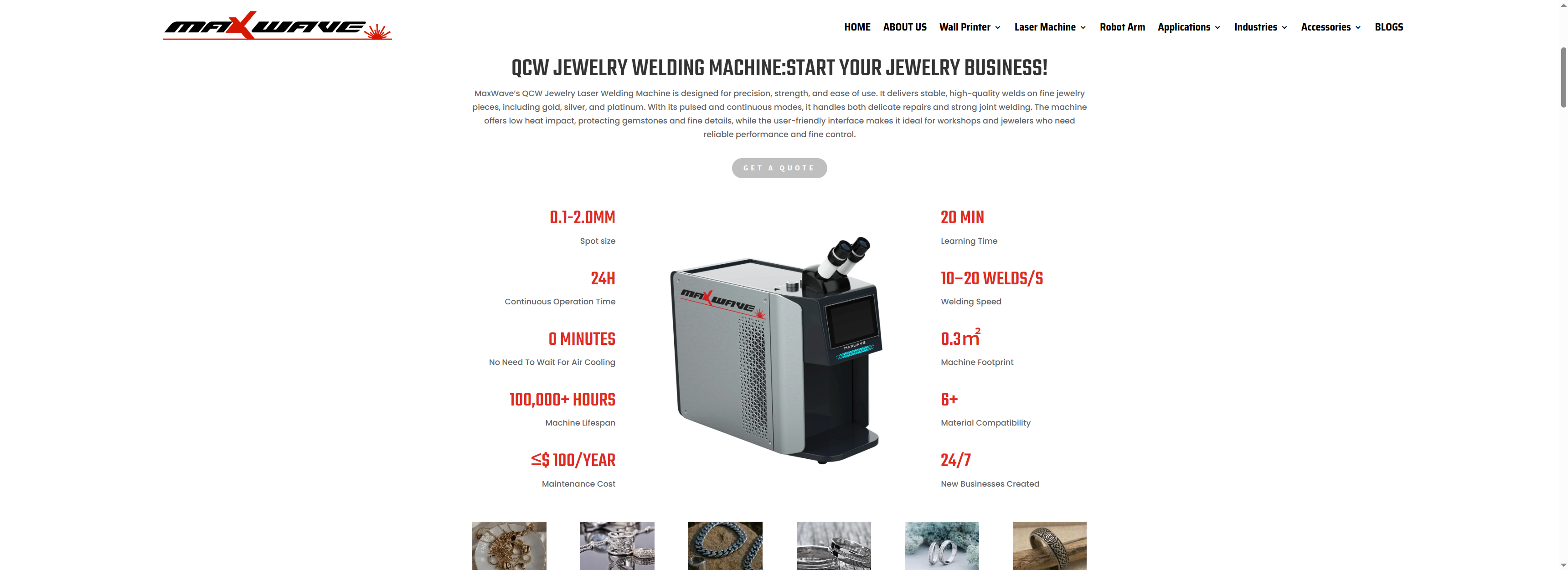

7. MaxWave MW-QW Series
Best Factory-Direct Value
MaxWave offers factory-direct QCW jewelry laser welders for gold, silver, platinum, palladium, titanium, stainless steel and other precision metals.
Depending on the configuration, the MW-QW series provides approximately 60–120W average power, 600–1,200W peak power, adjustable pulse widths from 0.2 to 15ms and spot sizes from around 0.1 to 2.0mm.
Its air-cooled construction reduces equipment size and maintenance requirements. The system is designed for ring repair, chain repair, prong retipping, porosity filling and precision assembly.
Price: Approximately $3,300–$4,900, depending on power, optics and included accessories.
Best for: Small and medium repair shops, independent goldsmiths, distributors, OEM buyers and businesses seeking lower factory-direct pricing.
What you need to know before buying
A factory-direct machine can deliver stronger specifications for the budget, but the supplier’s support system must also be evaluated.
Confirm warranty procedures, remote troubleshooting, training, parameter guidance, voltage, shipping terms and spare-parts availability. Request sample-welding videos using your actual materials before ordering.
ROI reality check
A $4,000 machine generating $800 in monthly net contribution has a theoretical payback period of five months.
At $2,750 per month, the machine cost could be recovered in approximately one and a half months. These figures assume that the shop already has enough repair demand and a trained operator.

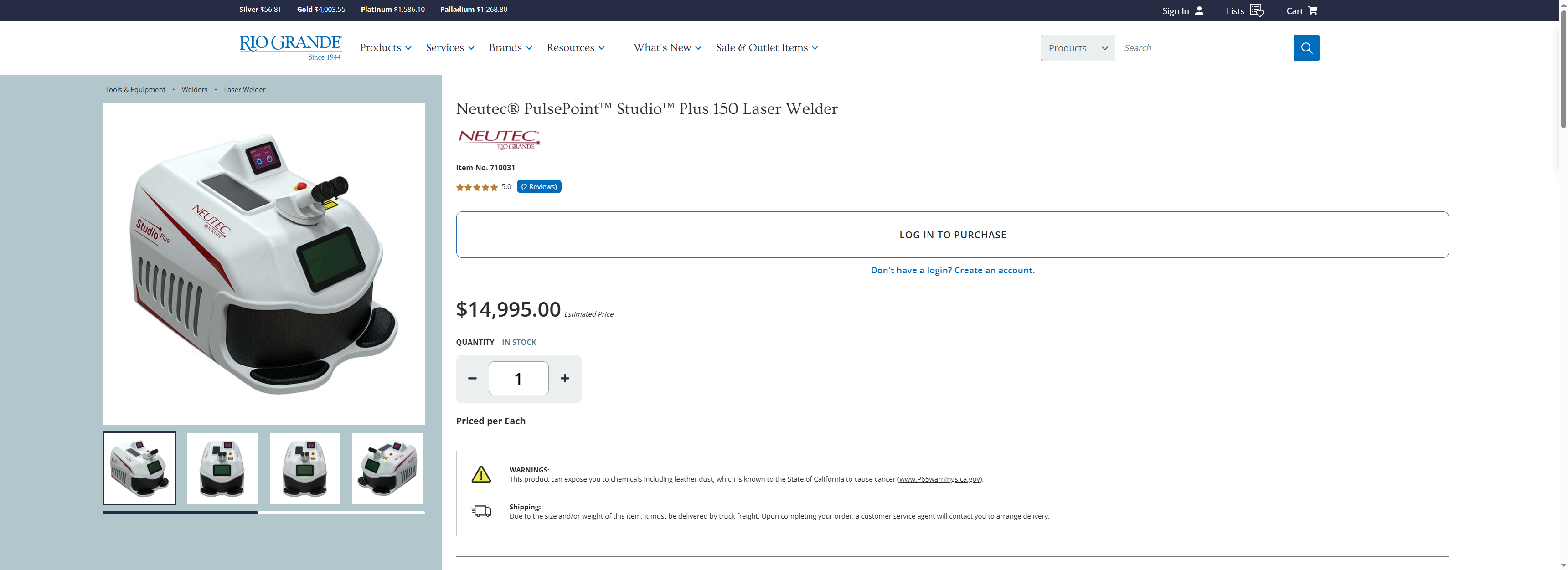

8. Neutec PulsePoint Studio Plus 150
Best for Dealer Support and Training
Neutec is closely connected with the professional jewelry supply industry and is distributed through Rio Grande.
The PulsePoint Studio Plus 150 jewelry welding machine is a 150-joule system designed for active retailers, designers and repair professionals. Depending on the configuration, it supports both 110V and 220V operation.
Its main advantage is access to an established jewelry-equipment distributor, structured documentation and training resources.
Price: Approximately $14,995, subject to distributor availability and account pricing.
Best for: US retailers, shops already purchasing through Rio Grande and buyers who prefer domestic ordering and training support.
What you need to know before buying
Neutec is not the lowest-cost machine with comparable output. Buyers are also paying for purchasing convenience, educational resources and dealer support.
Confirm what technical service is available after the warranty and whether local repairs, replacement parts or temporary solutions are offered during downtime.
ROI reality check
Better support can reduce operator mistakes and unplanned downtime, but low-volume shops may struggle to justify the purchase price.
A busy store generating $2,750 in monthly net contribution may recover the machine price in around six months. A low-volume user may need 18 months or longer.

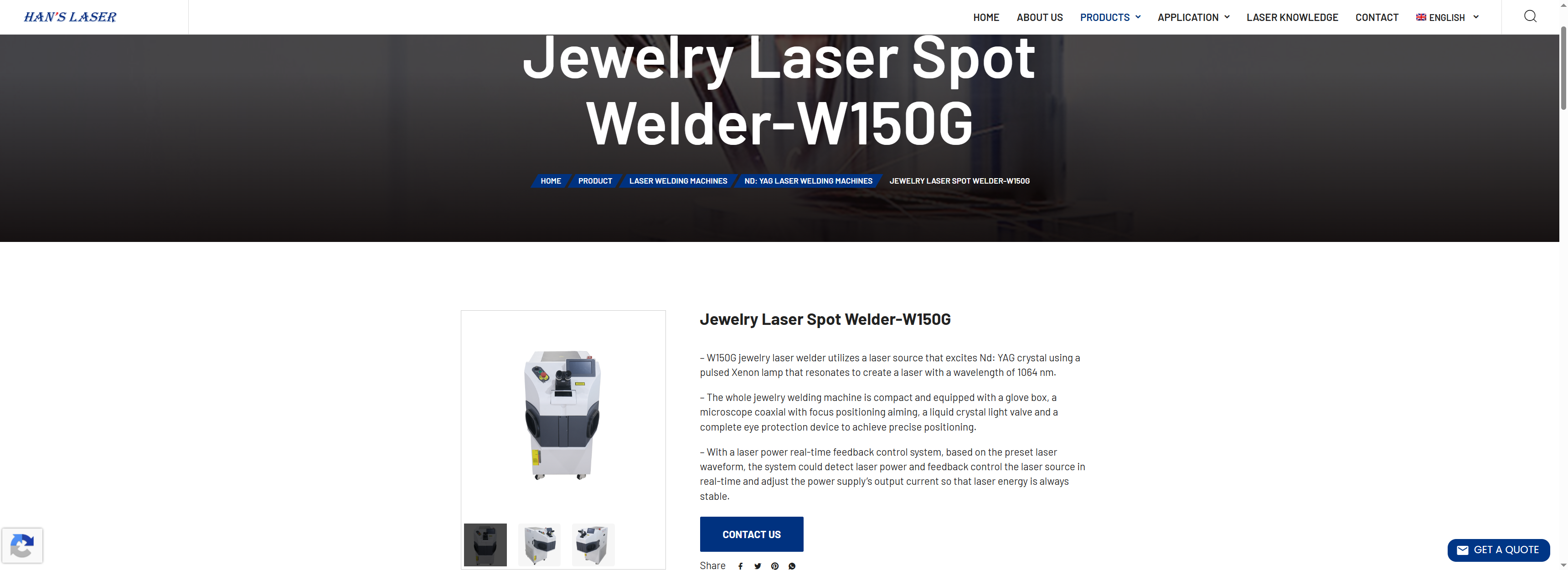

9. Han’s Laser W150G
Best Established Chinese Industrial Brand
Han’s Laser is a large industrial laser equipment manufacturer with experience across welding, marking, cutting and automation.
The W150G is a dedicated jewelry laser spot welder using a 1064nm YAG laser. It provides approximately 150W average power, 9kW peak power and up to 80 joules of pulse energy.
It is designed for gold, silver, platinum, stainless steel and titanium, including repairs involving seams, holes and damaged prongs.
Price: Not publicly listed. Buyers must request a quotation from Han’s Laser or an authorized distributor.
Best for: Larger jewelry workshops, industrial manufacturers and buyers who prioritize manufacturer scale and regional service coverage.
What you need to know before buying
At approximately 200kg, the W150G is much larger than compact benchtop systems. It may not be practical for a small retail counter or workshop with limited floor space.
Compare the complete delivered price, operating footprint and local service availability with smaller machines offering similar repair capability.
ROI reality check
ROI cannot be calculated accurately until a complete delivered quotation is available.
Include freight, customs duties, installation, gas equipment, extraction, training and expected maintenance when comparing it with other brands.

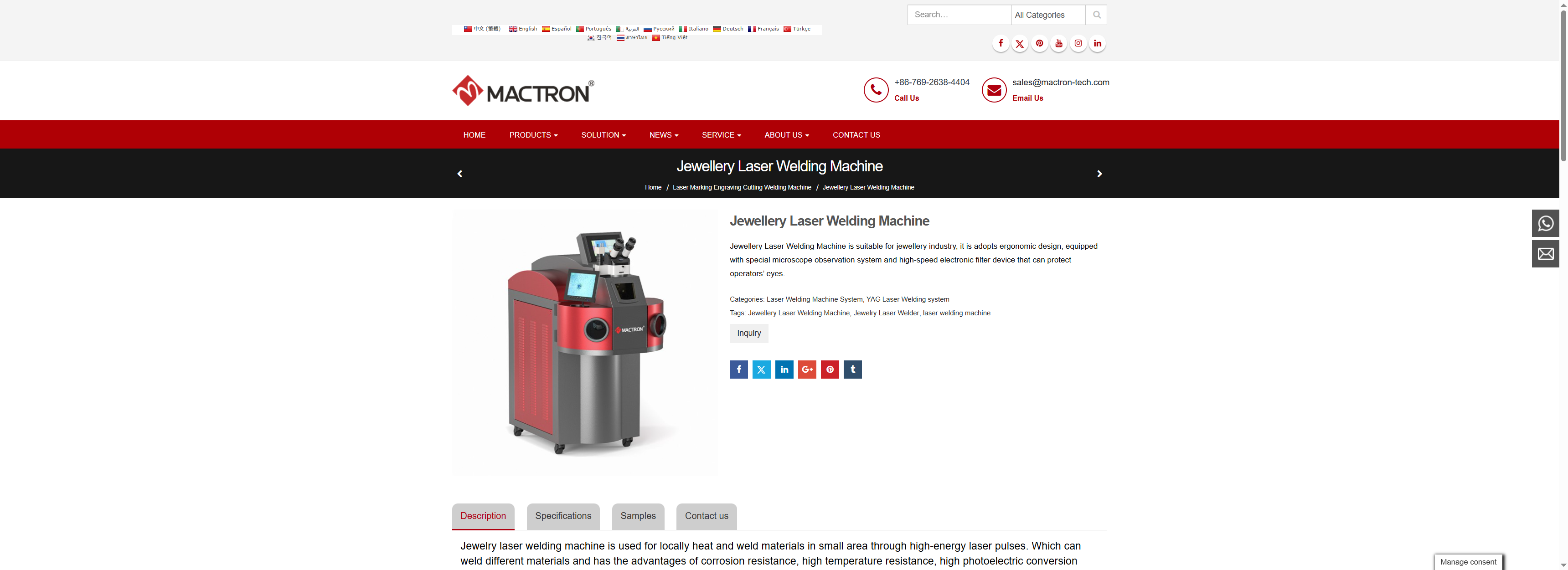

10. Mactron MT-W-J Series
Best Mid-Range Factory-Direct YAG System
Mactron manufactures a range of industrial laser equipment, including dedicated jewelry welding systems.
The MT-W-J series is available in approximately 100W, 150W, 200W and 300W configurations. Depending on the model, pulse energy ranges from around 60 to 90 joules.
It supports adjustable pulse widths, welding frequencies up to 20Hz and spot sizes from approximately 0.2 to 2.0mm.
Price: Around $5,560 per set, although the final price depends on power, optics, shipping and optional accessories.
Best for: Independent jewelry manufacturers, mid-sized repair workshops, distributors and buyers wanting a configurable factory-direct YAG machine.
What you need to know before buying
The same product page may cover several power configurations, so the listed price may not apply to every version.
Request a specification sheet tied to the exact model on your quotation. Confirm pulse energy, average power, cooling system, optics, electrical requirements and warranty terms.
ROI reality check
At $800 in monthly net contribution, a $5,560 machine could theoretically reach break-even in around seven months.
Higher-volume shops may recover the investment faster, but should also consider support quality and spare-parts lead times.
What to Know Before Buying a Jewelry Laser Welder
Compare More Than Wattage
Average power alone does not determine welding performance.
Pulse energy, peak power, pulse width, spot size, frequency and beam stability all influence how the laser jewelry welder performs. Two machines described as 150W systems may have very different capabilities.
Always compare the exact specifications of the quoted model.
Test Real Jewelry Samples
A demonstration on stainless steel does not prove that the machine can handle your daily repair work.
Send the supplier representative samples such as gold chains, damaged prongs, ring shanks, sterling silver, platinum and stone-set jewelry. Ask for a clear video showing the settings, welding process and final result.
Check Silver and Copper Performance
Silver and copper reflect laser energy and conduct heat quickly, making them more difficult to weld than many gold alloys.
Buyers working regularly with silver should request material-specific demonstrations before placing an order.
Calculate the Complete Cost
The advertised machine price may not include:
Shipping and insurance
Taxes and customs duties
Argon equipment
Fume extraction
Operator training
Electrical changes
Replacement lenses or lamps
Optional microscope or CCD upgrades
Compare the total installed cost rather than the product price alone.
Evaluate Support and Spare Parts
A lower purchase price loses its advantage if the machine remains out of service for several weeks.
Before buying, confirm who provides support, how quickly parts can be shipped, whether remote troubleshooting is available and what costs are excluded from the warranty.
Use this simple formula:
Payback period = Total installed cost ÷ Monthly net contribution from laser work
Net contribution is not the total price charged to the customer. It is the amount remaining after labor, consumables, payment fees, rework and other direct costs.
Example Payback Scenarios
Machine Price | Typical Work | Monthly Revenue | Estimated Payback |
|---|---|---|---|
$4,000 | Basic chain and ring repairs | $8,000 | 1.3 months |
$10,000 | Daily precision and stone-set repairs | $15,000 | 1.7 months |
$17,500 | High-value and complex jewelry repairs | $25,000 | 1.8 months |
$24,250 | Premium restoration and high-volume production | $35,000 | 1.7 months |
These examples assume that the business already has customers and can operate the machine productively. They do not include financing, marketing, training time, maintenance or seasonal changes in repair volume.
A premium machine makes more sense for busy shops handling high-value jewelry, multiple operators or consistent daily production.
A factory-direct machine may provide a better return for a smaller shop that wants to test demand, protect cash flow and bring outsourced repairs in-house.
Which Jewelry Laser Welder Should You Buy?
There is no single best machine for every repair shop.
Choose LaserStar for a proven professional system backed by a mature US support network.
Choose JewelryLaserNova for a compact QCW machine, lower entry cost and faster potential payback.
Choose Orotig for premium optics, intelligent controls and refined operator experience.
Choose Orion for a US-made benchtop system with several upgrade levels.
Choose SISMA for high-volume precision work and demanding production environments.
Choose Elettrolaser Dado 2.0 for a compact European entry-level machine.
Choose MaxWave for factory-direct pricing, flexible configurations and OEM support.
Choose Neutec for established dealer support and training resources.
Choose Han’s Laser for industrial manufacturing experience and a conventional YAG platform.
Choose Mactron for a configurable mid-range factory-direct system.
The right jewelry laser welder is the machine that can complete your actual repair work reliably, fits your service expectations and reaches break-even without placing unnecessary pressure on your cash flow.
Conclusion
The best jewelry welder is not always the most powerful or the most expensive model.
A small repair shop may benefit more from a compact, factory-direct machine with a shorter payback period, while a high-volume workshop may need the consistency, optics and support offered by a premium system.
Before making a decision, compare the complete installed cost, test the machine with your actual jewelry samples and calculate how much profitable work it can realistically support each month.
The right machine should help you complete better repairs, accept more valuable jobs and grow your business without creating unnecessary financial pressure.
Ready to find the right jewelry laser welder for your repair business? Contact JewelryLaserNova for a tailored machine recommendation and sample-welding test.
